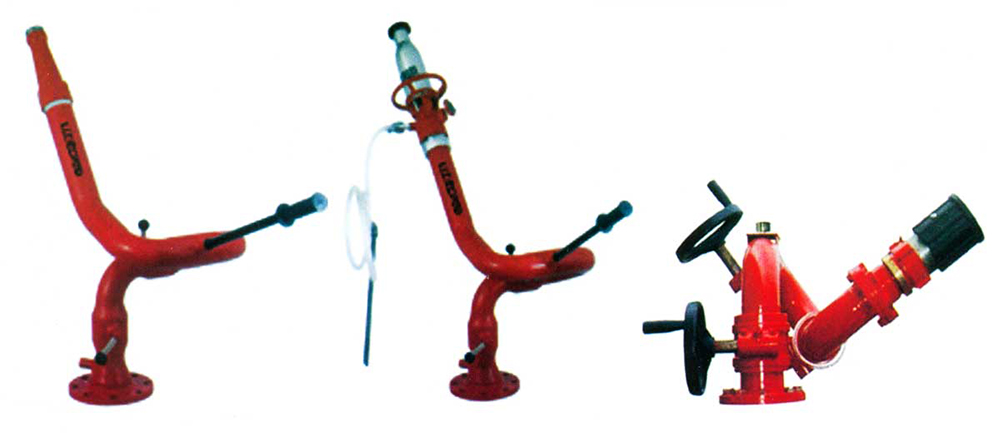

Water / Foam Monitors ( Stored Pressure / Gas Cartridge Type )
We are Manufacturer, Supplier, Exporter of Water Monitors, Foam Monitors, Water Monitors For Fire System, Foam Monitors For Fire System, Fire Extinguishers from Pune, Maharashtra, India. We provide our whole range to ALL OVER THE WORLD, but; We majorly target customers from below mentioned locations. Mumbai, Pune, Thane, Nashik, Chhatrapati Sambhajinagar (Aurangabad), Nagpur (Maharashtra), Delhi, Kolkata (West Bengal), Chennai, Coimbatore (Tamil Nadu), Bengaluru, Mysuru, Hubballi Dharwad, Mangaluru / Mangalore, Belagavi / Belgaum (Karnataka), Hyderabad (Telangana), Surat, Ahmedabad, Vadodara (Gujarat).
Technical Specification
Water / Foam Monitor |
|||
Material |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Maximum Operating Pressure |
12 Bar (175 PSI) |
12 Bar (175 PSI) |
12 Bar (175 PSI) |
Flow Rate |
1750 LPM @ 7Bar |
3750 LPM @ 7Bar |
1750 LPM @ 7Bar |
Throw Range |
52 Meters, Projection Angle : 30° |
67 Meters, Projection Angle : 30° |
45 Meters, Projection Angle : 30° |
Inlet Flange |
100 Nb (4") Raised Flange ANSI B 16.5 150 # |
100 NB (4") Raised Flange ANSI B 16.5 150 # |
100 NB (4") Raised Flange ANSI B 16.5 150 # |
Monitor Outlet |
2.5" Water way / Male BSP Thread Nozzle : Jet / Jet - Spray |
3" Water way / Male BSP Thread Nozzle : Jet / Jet - Spray |
2" Water way with Jeet Spray / Aqua Foam Nozzle with Pickup Tube |
Monitor Movement |
Vertical Movement - Manual Swivel Operation With Lock Horizontal Movement - Manual Swivel Operation With Lock |
Vertical Movement - Manual Swivel Operation With Lock Horizontal Movement - Manual Swivel Operation With Lock |
Vertical Movement - Manual Swivel Operation With Lock Horizontal Movement - Manual Swivel Operation With Lock |
Hydrostatic Test Pressure |
25 Bar |
25 Bar |
25 Bar |
Monitor Rotation |
360° Continuous |
360° Continuous |
360° Continuous |
Monitor Elevation |
(+) 90° above horizontal |
(+) 90° above horizontal |
(+) 90° above horizontal |
|
(-) 45° below horizontal |
(-) 45° below horizontal |
(-) 45° below horizontal |
Finish |
Red Polyurethane |
Red Polyurethane |
Red Polyurethane |
Ordering Information |
Please Specify Monitor Model, |
Please Specify Monitor Model, |
Please Specify Monitor Model, |
|
Flange Connection, |
Flange Connection, |
Flange Connection, |
|
Nozzle Model & Flow rate |
Nozzle Model & Flow rate |
Nozzle Model & Flow rate |
