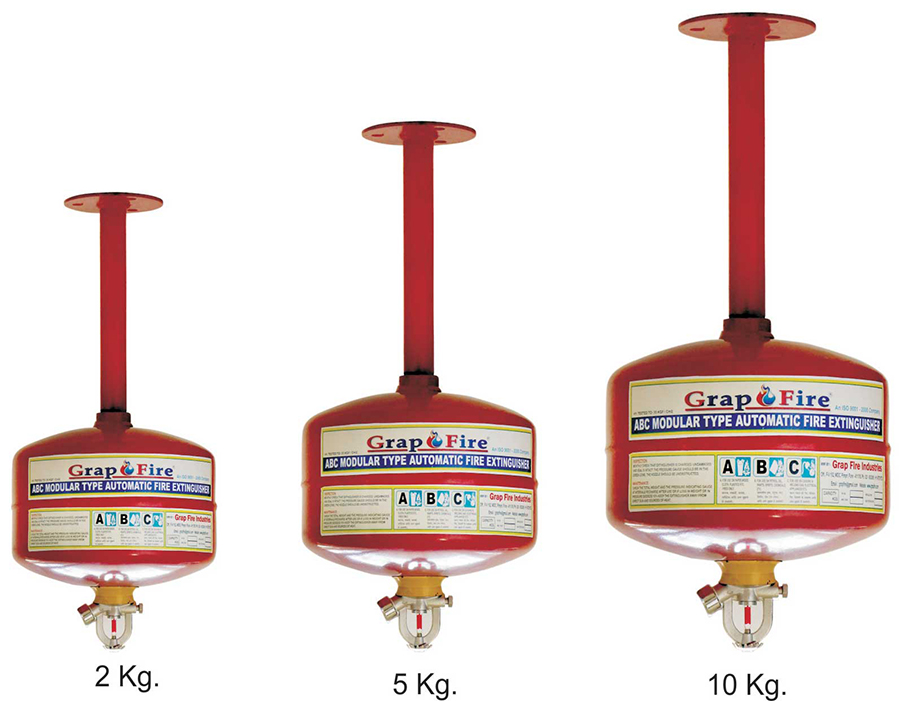

Automatic Modular Type Fire Extinguishers
We are Manufacturer, Supplier, Exporter of Automatic Modular Type Fire Extinguishers, Fire Extinguisher from Pune, Maharashtra, India. We provide our whole range to ALL OVER THE WORLD, but; We majorly target customers from below mentioned locations. Mumbai, Pune, Thane, Nashik, Chhatrapati Sambhajinagar (Aurangabad), Nagpur (Maharashtra), Delhi, Kolkata (West Bengal), Chennai, Coimbatore (Tamil Nadu), Bengaluru, Mysuru, Hubballi Dharwad, Mangaluru / Mangalore, Belagavi / Belgaum (Karnataka), Hyderabad (Telangana), Surat, Ahmedabad, Vadodara (Gujarat).
Its Most Efficient Applications Include :
• Bus and Car Engines
• Train : Electric Distributor Coach
• Computer Area
• Hotels, Restaurants, Motels
• ATM Center
• Server Rooms
• Telecom Shelter and Tower
• Paint and Varnish Rooms
• Domestics Gas Storages
• Fuel and Flammable Liquid Storage
• Electrical Panels
• Oil Fill-in Station
This product of grap fire is a benchmark in the industry of fire safety. It is self sufficient in detecting and extinguishing fire in its installed local area. Being a portable item, it is easy to install and re-locate. Its high cost effectiveness and its active presence in case of emergencies and power failure without power back up, gives it a clear edge over the fixed be protection system. This grap fire product is the most efficient in its class since it doesn't need any human intervention or presence. Its like your 24 x 7 fire security guard for your most valuables. Its flexibility can be measured in terms of its fire-detecting temperature (varies from 56 deg. To 107 deg.) and its capacities (available in 2 kg, 4 kg, 5 kg, 6 kg, 9 kg, 10 kg, 15 kg).
Its non-human intervention for its working allows it to be installed in the remote areas where in case fire emergencies, human each could be delayed or is not possible.
Technical Specification
CAPACITY in kg. |
2kg Capacity |
5kg Capacity |
10kg Capacity |
15kg Capacity |
Media |
ABC Powder / Clean Agent |
ABC Powder / Clean Agent |
ABC Powder / Clean Agent |
ABC Powder / Clean Agent |
Area Coverage |
2-3m2 Approx |
3-4m2 Approx |
5-7m2 Approx |
8-10m2 Approx |
Test Pressure |
30 kgf / cm |
30 kgf / cm |
30 kgf / cm |
30 kgf / cm |
Anti Corrosive Treatment |
Powder Coated |
Powder Coated |
Powder Coated |
Powder Coated |
Shell Diameter |
175mm 5% |
240mm 5% |
300mm 5% |
405mm 5% |
Overall Height |
185mm 25% |
265mm 25% |
350mm 25% |
255mm 25% |
Charged Weight |
3.5 kg approx. |
7.5 kg approx. |
13.5 kg approx. |
20.5 kg approx. |
Bulb Temperature |
56-107 degrees |
56-107 degrees |
56-107 degrees |
56-107 degrees |
Charged Pressure |
15 kgf / cm2 |
15 kgf / cm2 |
15 kgf / cm2 |
15 kgf / cm2 |
Operational time in second |
5-7 |
8-10 |
10-15 |
18-24 |
Mounting |
Ceiling Mounting Typae |
Ceiling Mounting Typae |
Ceiling Mounting Typae |
Ceiling Mounting Typae |
