Water And Foam Partable Fire Extinguishers ( Stored Pressure / Gas Cartridge Type ), Fire Extinguisher Manufacturer, Supplier, Exporter, Pune, Maharashtra, India

Water / Foam Partable Fire Extinguishers ( Stored Pressure / Gas Cartridge Type )
water-foam-partable-fire-extinguisher-isi
water-foam-partable-fire-extinguisher

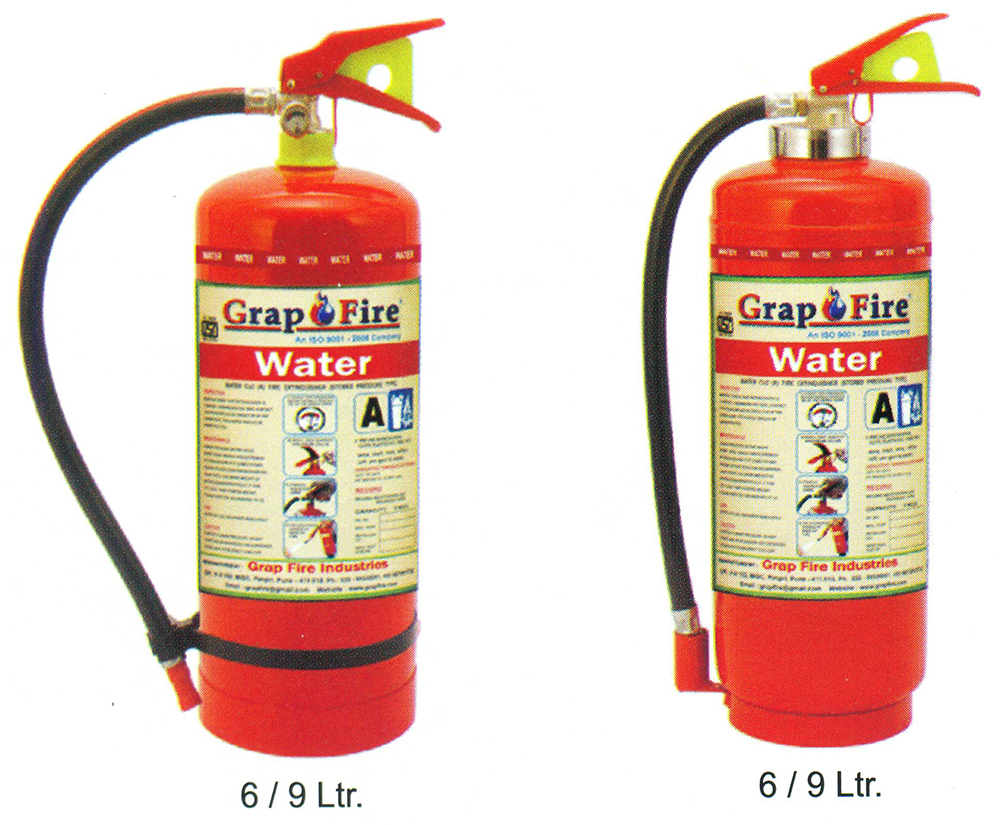

WATER Partable Fire Extinguisher

water-foam-partable-fire-extinguisher

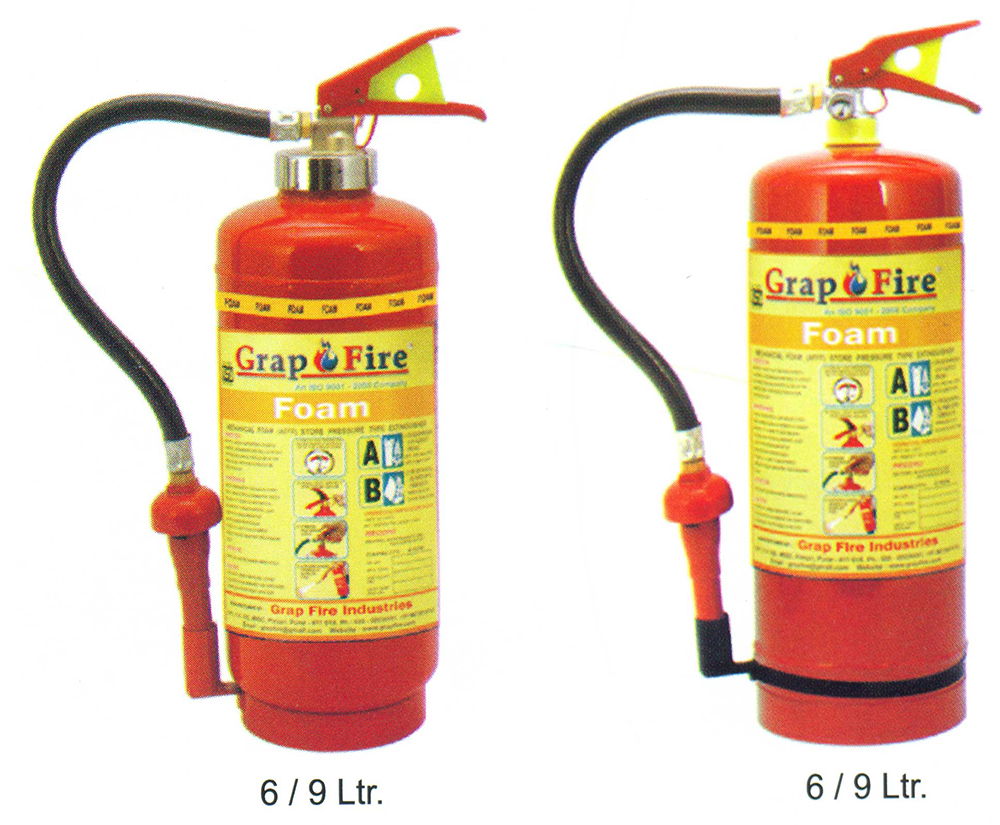

FOAM Partable Fire Extinguisher


Technical Specification

WATER

FOAM

Capacity (Ltr.)

6

9

6

9

Anti-Corrosive Inhibitor

Epoxy Polyester Powder coating

Epoxy Polyester powder coating

Epoxy Polyester powder coating

Epoxy Polyester powder coating

confirming IS code

15683

15683

15683

15683

Type of Extinguisher

constant Pressure/ Gas Cartridge

Constant Pressure/Gas Cartridge

Constant Pressure/Gas Cartridge

Constant Pressure/Gas Cartridge

Type of Extinguishing Media

Soft Water

Soft Water

Water & AFFF IS4989

Water & AFFF IS4989

Wxpellant

Pressurized with N2 gas / 60gm Gas Cartidge

Pressurized with N2 gas/90gm/ 120gm Gas Cartridge

Pressurized with N2 gas/60gm Gas Cartridge

Pressurized with N2 gas/90gm/120gm Gas Cartridge

Minimum Effective Discharge ( % )

95

95

95

95

Minimum Jet Length (mtrs.)

More than 2 mtr.

More than 2 mtr.

More than 2 mtr.

More than 2 mtr.

Discharge Time (Sec.)

More than 13 Sec.

More than 13 Sec.

More than 13 Sec.

More than 13 Sec.

Hydraulic Test Pressure ( Kgf/cm2)

35

35

35

35

Operating Position

Upright

Upright

Upright

Upright

Charged Pressure (Kgf/cm2)

15

15

15

15

Operating Temperature Range (°C)

0 to (+) 55

o to (+) 55

o to (+) 55

o to (+) 55

Opperating Valve

Squeeze Grip Type with Discharge hose and Nozzle

Squeeze Grip Type with Discharge hose and Nozzle

Squeeze Grip Type with Discharge hose and Nozzle

Squeeze Grip Type with Discharge hose and Nozzle

Fire Rating

2A

3A

2A, 21B

3A, 55B


Application

Class A Fire : Wood, Textiles, Paper, Plastics, Clothes, Cotton, Mill, Jute Mill etc.
Caution : Do not use on Electrical & Oil Fire
