Fire Hose Reels

First - Aid Hose Reel As per IS 884


Technicai Specifications
Type : Swinging 1800 Wall Mounting
Size : Intel 20mm (3/4" BSP Thread Size)
Conforming Specification : IS 884

Material of Construction :


Hub Sides & Wall Bracket

-

M.S. Sheet of IS : 543

Swivel Joint

-

LTB-2 of IS : 318

Pipe with Fitting

-

Steel of IS : 1239 Part I

Branch Pipe with Nozzel

-

IS : 8090

Hose Reel Tubing

-

Thermoplastic Hose (IS : 12585) Rubber Hose (IS : 444)


Performance Test
• Hydrostatic Test: Tested at 21 Kgf/cm2
• Range & Water Flow rate test at 7 Kgf/cm2
(A) Discharge : 24LPM (B) Range (Jet Length) : mtr(min)

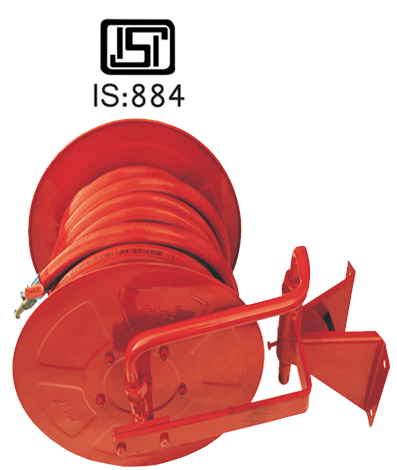

First-Aid Hose Reel

Fire Hose Reel


fire-Hose-Reel

Features :


Side Plates

-

Made of high quality mild steel, powder coated in Red color

Side Plates 0. D. (Diameter)

-

560mm

Distance Between Side Plates

-

6 Inches

Water Ways

-

Made from non - ferrous metal (Aluminium Alloy) for making it corrosion - free, duly powder coated.

Horse Reel Drum

-

Confirming to ISO, CE

Fire Horse

-

High quality semi - rigid ISI marked (Type -1 & Type- ) / CE marked fluted finish GRAP FIRE Thermoplastic Hos with 2 years Guarantee.
Horse Colours

Available

-

Red / Black / Yellow color.

Hose Nominal Bore (ID)

-

19mm / 20mm / 25mm, as per your requirement.

Hose Length

-

20 / 25 / 30 / 36 / 40 rntrs. as per requirement.

Shut-off Nozzle

-

Rotary operated, leak proof, CE marked hydraulically crimped with corrosion - fress Stainless Steel fitting, shutt - off nozzle with shut, spray & jet fuctions, made of super - tough Polymer Alloy in red colour.

Swivel

-

1800 double swivel.

Working Pressure

-

1.2 Mpa (12 Bar).

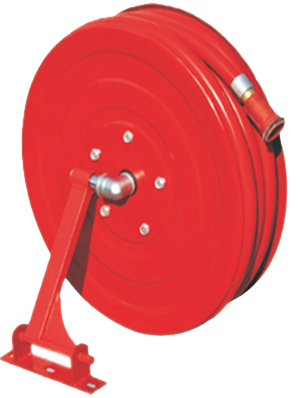

Commercial Hose Reel

Features :


Side Plates

-

Made of high quality mild steel, powder coated in Red color

Side Plates 0. 0. (Diameter)

-

500mm

Distance Between Side Plates

-

6 Inches

Water Ways

-

Made from non-ferrous metal for making it corrosion-free, duly powder coated.

Horse Reel Drum

-

Confirming to ISO/CE

Fire Horse

-

High quality semi-rigid ISI marked (Type-1 & Type-2)/ CE marked fluted finish MITRAS Thermoplastic Hose with 2 years Guarantee.

Horse Colours Available

-

Red / Black / Yellow color.

Hose Nominal Bore (ID)

-

19mm / 20mm / 25mm, as per your requirement.

Hose Length

-

20 / 25 / 30 / 36 / 40 rntrs. as per requirement.

Shut-off Nozzle

-

Rotary operated, leak proof,

Swivel

-

double swivel.

Working Pressure

-

1.2 Mpa (12 Bar).
